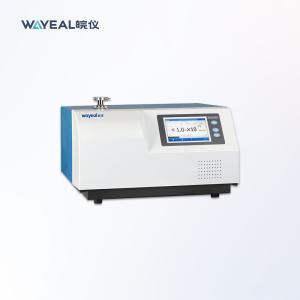

Technical Data of SFJ-261 Helium Leak Detector
| Product Name | Helium Leak Detector |
| Diamension | 592 x498 x370mm |
| Operating temperature | 0~40°C |
| Detectable Quality | 2, 3, 4 (H2, He3, He4) |
| User Interface | 7inch Color Touch Screen |
| Detection Method | Helium Leak Detection |
| Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode | 5*10-13 Pa·m3/s |
| Communication Interface | RS232/485, USB*2 |
| Max Allowable Leak Detection Pressure (Pa) | 1500 |
| Ion Source | 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
| Main Features | Mass Spectrometer Leak Detector, Helium mass spectrometer Leak Detector, helium leak testing |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode | 5*10-9 Pa·m3/s |
| Start Time | 2min |
| Leak Detection Port | DN25KF |
| Power | AC220V, 50Hz/60Hz |
| Language | Chinese/English |
